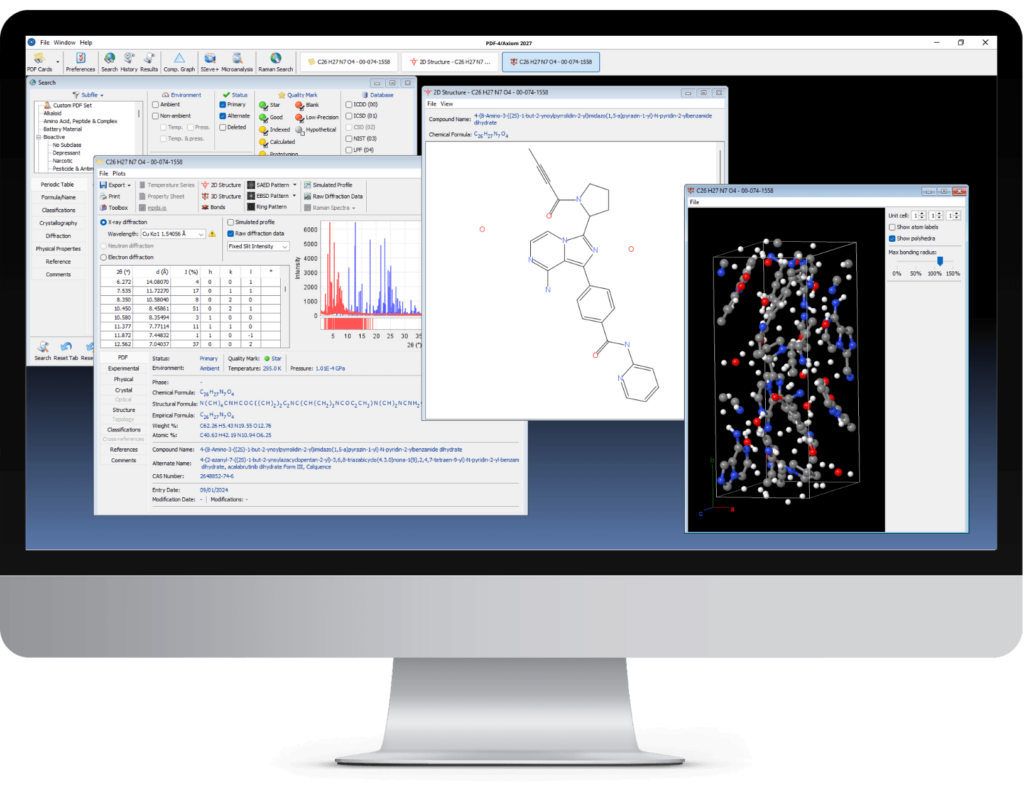

PDF-4/Axiom 2025
Quality plus Value
PDF-4/Axiom 2025 is designed for phase identification and quantitation. This cost-effective database includes 110,800+ selected data entries and 80,700+ entries with atomic coordinates selected for benchtop users. PDF-4/Axiom features 79,500+ entries with I/Ic values for quantitative phase analysis by Reference Intensity Ratio. PDF-4/Axiom is useful for routine phase identification and quantitation (both by Rietveld and RIR method). PDF-4/Axiom data is focused on ambient entries.
ICDD’s data mining software, SIeve+, is included!
- PDF-4/Axiom offers an option to purchase two additional seats licensed for three years.
- Six (6) year and nine (9) year prepaid packages.

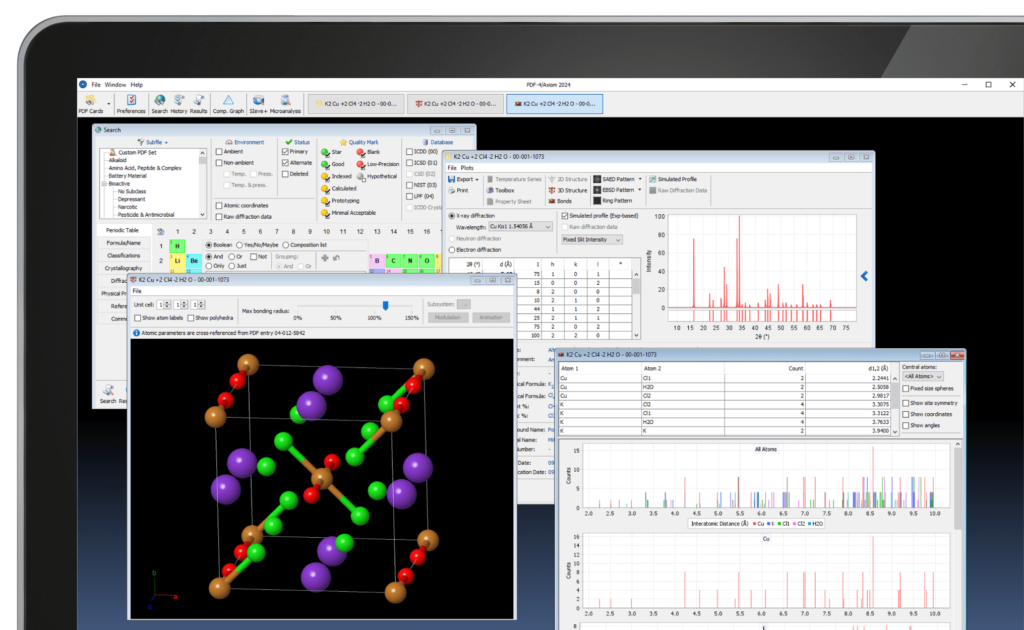

Using PDF-4/Axiom 2025
Key Points
- Cost-effective
- Single License: three (3) year license term
- Optional: two (2) additional seats (three (3) year license term)
- Six (6) year and nine (9) year prepaid packages
- New license available after term expires
- Featuring 110,800+ entries, including inorganic and organic entries
- 80,700+ entries with atomic coordinates
- Data focused on ambient entries
- Fundamental mineral entries
- ICDD’s data mining software SIeve+, included
Identify
- Number of entries – 110,800+
Quantify
- Entries with Reference Intensity Ratio (I/Ic) – 79,500+
- Entries with Atomic Coordinates – 80,700+
- Entries with Experimental Raw Data Digital Patterns – 9,767
Database Sources
Our collaborative partners include:
- ICDD Powders (00) – International Centre for Diffraction Data Newtown Square, PA, USA
- ICSD (01) – Fachinformationszentrum Karlsruhe (FIZ) Karlsruhe, Germany – Inorganic Crystal Structure Database
- NIST (03) – National Institute of Standards and Technology, Gaithersburg, Maryland, USA
- MPDS (04) – Material Phases Data System, Vitznau, Switzerland – Linus Pauling File (LPF)
Subfiles
Four select subfiles:
- Metals & Alloys – 26,249
- Mineral & Related Materials – 27,130
- Ceramics – 9,638
- Common Phases – 5,848
Database Sources
-
Subfile – select filters related to assigned subfiles/subclass.
-
Environment – select filters related to the environment (especially temperature and pressure).
-
Atomic Coordinates – filters based on entries that contain atomic coordinates or a cross-reference to an entry with atomic coordinates.
-
Raw Diffraction Data (PD3) – filters based on entries with high quality raw experimental data that can consist of nano-crystalline materials, semi-crystalline materials, or amorphous materials.
-
Status – select filters based on the status of the pattern, which can be Primary, Alternate, or Deleted.
-
Quality Mark (QM) – select filters related to the quality evaluation assigned to the data.
-
Database – search the entire database or select the data entry source (i.e., ICDD (00) – ICDD’s experimental patterns).

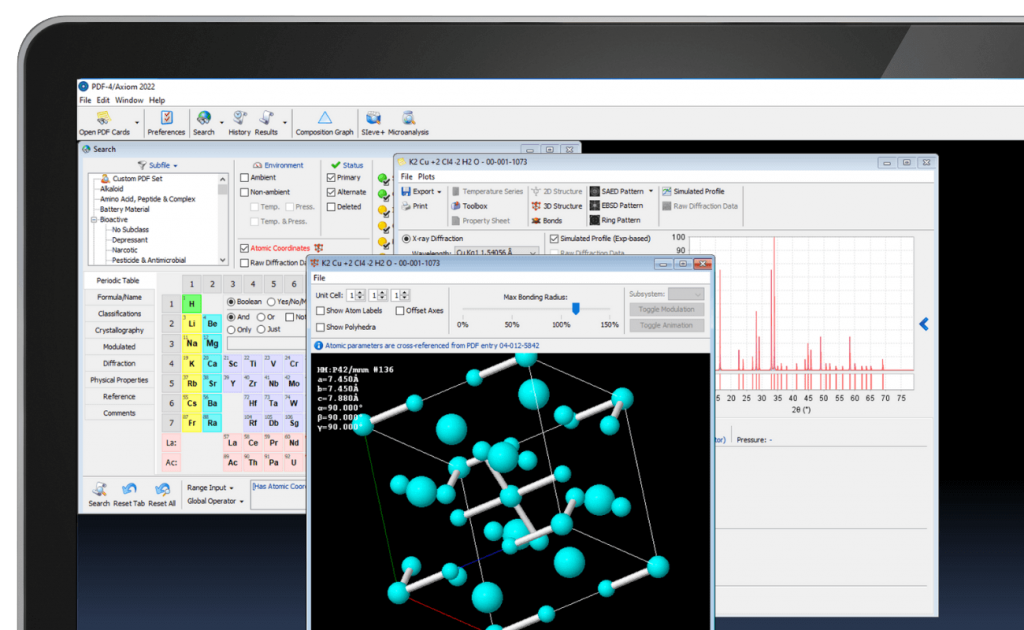

Use your mouse to hover over the interactive elements in the red section of the search window and click to learn more.
Use your mouse to hover over the interactive elements within the red boxes on the PDF entry and click to learn more.

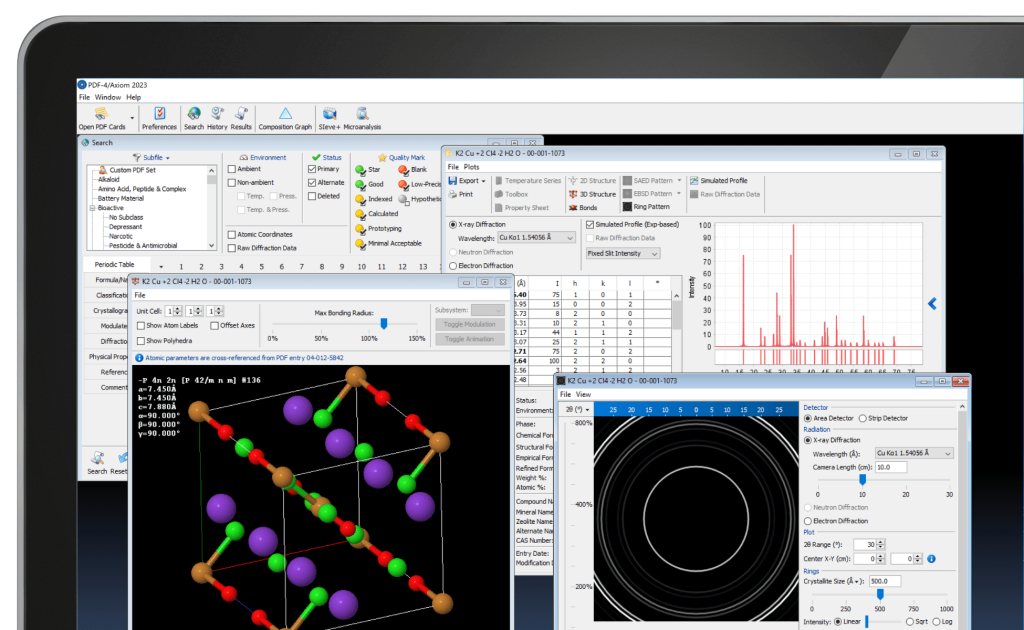

A Powder Diffraction FileTM (PDF®) entry displays all of the scientific and bibliographic data available for a particular PDF entry and is organized into the following categories:
Temperature Series, Toolbox, Property Sheet, 2D Structure, View 3D Structure, Bond Distances/Angles, Simulated Electron Spot Pattern, Electron Backscattering Pattern, Ring Pattern, Simulated Diffraction Profile, Raw Diffraction Data (PD3)*.
- Equipment factors
- Historic stick pattern and simulated pattern
- Tabular view of reported data: PDF, Experimental, Physical, Crystal, Optical, Structure, Classifications, Cross-references, References, Comments
*Note: The availability of each feature varies by PDF entry.

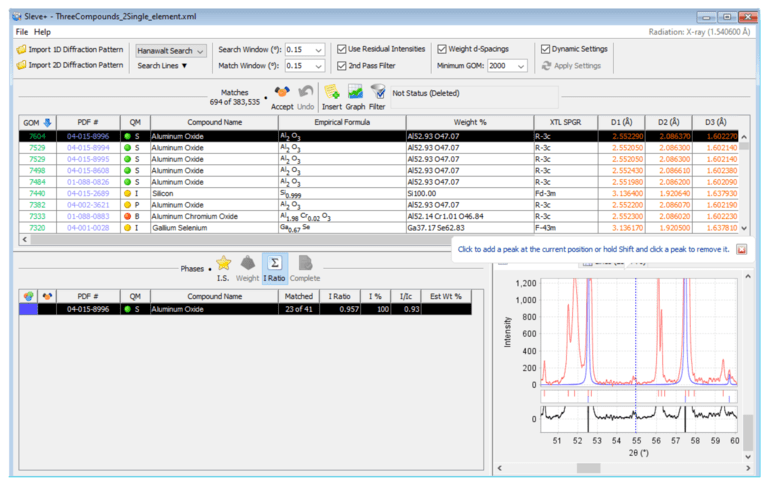

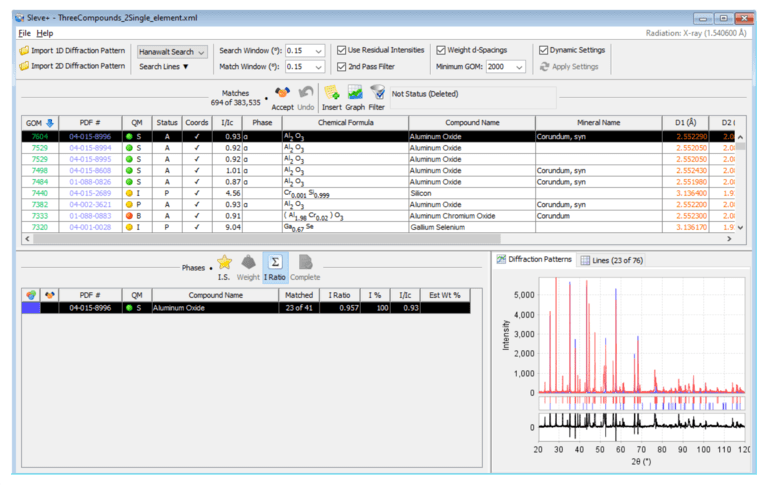

ICDD’s search indexing software, SIeve+ for PDF-4/Axiom is now included for FREE. SIeve+ is designed to search and identify unknown materials. SIeve+ is integrated into the ICDD databases to allow the use of the extensive data mining interfaces, searches, and sorts available to improve the accuracy and precision of the identification process. For example, users can utilize the extensive permutable searches in each database, then define their own search subfile or use any of the “application or expert-defined” subfiles and subclasses to increase the accuracy of their phase identification. In many cases, this provides a unique capability to analyze the most difficult problems.
SIeve+ offers a variety of algorithms and options that allow users to optimize results for particular chemistries and both standard and non-standard diffraction systems. SIeve+ features automatic rotation of the eight strongest lines (Hanawalt) or the eight longest of the strongest lines (Fink) or the eight longest lines (Long8) to look for entries that exhibit the best Goodness of Match (GOM). In the last few years, new algorithms have been added to identify non-crystalline materials and complex multi-phase specimens. Most of the algorithms were developed and optimized for a particular type of analysis and the options provide the user with a wide breadth of analytical capability. SIeve+ can be complementary to most commercial software programs. This complementary nature demonstrates the strength of SIeve+ in the analysis of minor and trace phases where the full filtering capability of the PDF databases can be applied.
Want to learn more about SIeve+? Click here.
- Included for FREE
- Match filter algorithms – better results, more accuracy
- Import d-I list, 1D diffraction patterns, and 2D diffraction patterns
- Displays simulated diffraction patterns for phases in graph
- Qualitative and quantitative analysis
- Directly interfaces to all PDF databases for accurate filtering and analysis – full data mining
- Excels at the identification of low concentration phases
- Supports X-ray, synchrotron, electron, and neutron data
- “Intelligent” RIR for semiquantitative analysis.
OUR CUSTOMERS HAVE SPOKEN
READY TO PURCHASE PDF-4/AXIOM?
- Intel® Core™ 2 Duo processors (recommended minimum), or better.
- Supported Microsoft® operating systems:
- Windows® 7 SP1
- Windows® 8/8.1
- Windows® 10
- Windows® 11
- 4 GB of system memory
- 4 GB of hard drive space
Note: It is necessary to have Administrator privileges or use the Administrator account and password for your local domain in order to install this product. You can obtain your domain by running the following command line in a Command Prompt window: ipconfig/all. Your local domain will appear next to the “Host” label.
Prior Release Requirements
2024 Release
- Intel® Core™ 2 Duo processors (recommended minimum), or better.
- Supported Microsoft® operating systems:
- Windows® 7 SP1
- Windows® 8/8.1
- Windows® 10
- Windows® 11
- 4 GB of system memory
- 3 GB of hard drive space
2023 Release
- Intel® Core™ 2 Duo processors (recommended minimum), or better.
- Supported Microsoft® operating systems:
- Windows® 7 SP1
- Windows® 8/8.1
- Windows® 10
- Windows® 11
- 4 GB of system memory
- 3 GB of hard drive space
2022 Release
- Intel® Core™ 2 Duo processor or better
- Supported Microsoft® Operating Systems:
- Windows® 7 SP1
- Windows® 8
- Windows® 8.1
- Windows® 10
- NTFS File System required
- 4 GB of System Memory
- Installation requires 3 GB of hard-disk space
2021 Release
- Intel® Core™ 2 Duo processor or better
- Supported Microsoft® Operating Systems:
- Windows® 7 SP1
- Windows® 8
- Windows® 8.1
- Windows® 10
- NTFS File System required
- 4 GB of System Memory
- Installation requires 3 GB of hard-disk space
2020 Release
- Intel® Core™ 2 Duo processor or better
- Supported Microsoft® Operating Systems:
- Windows Vista® (32-bit) SP2
- Windows® 7 (32 & 64-bit) SP1
- Windows® 8 (32 & 64-bit)
- Windows® 8.1 (32 & 64-bit)
- Windows® 10
- NTFS file system required
- System memory recommended – 4 GB
- Hard-disk space required – 3 GB
Licensing
PDF-4/Axiom is licensed for use on a single PC. It cannot be installed, accessed, or displayed on more than one PC without purchasing additional seats. Two additional seats can be purchased at an additional cost. A seat is defined as a single PC installation. Additional seat registrations will mirror the original registration key date.
It is expressly prohibited to access the database over a network or access the database using desktop sharing or screen sharing software.
Registration
This product requires registration upon installation. The term of the license shall be three (3) years from the license registration key date.
A registration key will be issued within 48 hours (Monday through Friday) of receipt of your information. If you have not heard from us within 48 hours, kindly fax us your registration (610.325.9823) noting that it is a second request, or call us at 610.325.9814.
Media Available for Purchase –
USB or Download
Vendor Software –
ICDD partners with licensed software developers, including equipment manufacturers and independent developers to develop commercial data analysis programs that work seamlessly with our databases.
Ordering Information –
Please send us a sales order via fax, email, or mail. ICDD requires the name of the end-user on all orders. Use product codes in your order, if possible. A convenient Order/Quotation Form can be found here.
- Fax – (610) 325-9823
- Email – sales@icdd.com
- Mail – 12 Campus Blvd, Newtown Square, PA 19073-3273
Pricing –
The prices listed herein supersede all others previously published and are subject to change without notice. ICDD reserves the right to discontinue any product at its discretion. See the Price List or contact our Customer Service Department for the most recent product information and pricing.
Return Policy –
Products may be returned within 30 days from the invoice date for a full refund or credit (excluding shipping/handling). Products must be returned in their original condition to qualify for a refund or credit. Registered products do not qualify. Please complete a Return Merchandise Authorization (RMA) form to receive approval prior to returning the product. Defective products will be replaced promptly but must be returned for testing.
Warranty Policy –
Customers’ sole remedy for any defective Licensed Product shall be replacement of the Licensed Product, which right must be exercised by written notice given within 30 days of purchase. Defective products will be replaced promptly but must be returned for testing. Product warranty is on the system requirements associated with the product release. If you need to change your computer specifications, ICDD recommends referencing the ReadMe.txt or product insert for your product release to check for compatibility.
Payment Terms –
Wire transfers, credit cards (MasterCard, Visa, American Express), and checks in USD$ and drawn on U.S. banks are acceptable forms of payment. Letters of credit will not be accepted. Payment is due within 30 days from the invoice date. Finance charges of 1.5% per month (annual percentage rate of 18%) may be applied to overdue balances.
Licensing –
ICDD licenses the use of the Powder Diffraction File, associated software, and JADE software packages. Licensing for the Powder Diffraction File, associated software, and JADE software packages are provided via USB, USB dongle, or Download. ICDD’s product licenses are nontransferable and intended for use on a single computer. Server licenses are available for use on multiple PCs. Please refer to the sales descriptions and product policies for further information on licensing.
Site Licensing
Multi-year Licensing
Shipment –
The ICDD ships via INCOTERM: EXW / EXWORKS. Import duties and all taxes are not included in pricing and are the sole responsibility of the customer. Shipment will be made by a commercial carrier chosen by ICDD. For your convenience, shipping charges will be added to all invoices. Shipments can be insured upon request; additional charges will apply.
Orders & Delivery –
Orders that include terms and conditions are reviewed prior to acceptance. Once accepted, they are processed on a first-in/first-out basis.
NOTE: Customers in Japan and South Korea, must order through an ICDD licensed distributor.
Products related to PDF-4/Axiom 2025:
The Powder Diffraction File (PDF)
Not sure which database you should purchase? Search using chemical name, formula, and elements
to find out which ICDD database product is right for you.
Call (610) 325-9814 or toll free (866) 378-9331 (US and Canada) or email sales@icdd.com
